Bộ Điều Khiển Nhiệt Độ Honeywell DC1010 – PID Đa Năng 1/16 DIN

Bộ Điều Khiển Nhiệt Độ Honeywell DC1010 – PID Đa Năng 1/16 DIN | A-System

Bộ Điều Khiển Nhiệt Độ Honeywell DC1010 – PID Đa Năng 1/16 DIN

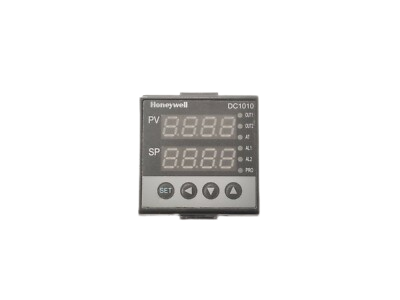

Hình ảnh bộ điều khiển nhiệt độ Honeywell DC1010

Giá tham khảo: Liên hệ để được báo giá tốt nhất (CO/CQ đầy đủ, bảo hành 18-24 tháng).

Yêu Cầu Báo Giá Ngay

Giới Thiệu Về Honeywell DC1010

DC1010 thuộc dòng DC1000 của Honeywell, là bộ điều khiển nhiệt độ microprocessor 1/16 DIN với độ tin cậy cao, giá thấp. Hỗ trợ PID/ON/OFF, heat/cool với 2 PID sets, motor position control không cần slidewire feedback, phase angle/zero-crossover control (1/3 pha). Lý tưởng cho máy sấy, đóng gói bán dẫn, xử lý nhựa, máy đóng gói, sơn phủ, buồng khí hậu.

Lợi ích nổi bật:

  • Dễ cấu hình: 2 level config, mã bảo mật 4 chữ số, ẩn parameter.
  • Hiển thị kép: 4 chữ số PV/SP, bargraph 10 LED, LED status cho output/Auto/Manual/Programmer.
  • Setpoint programming: 2 chương trình x 8 segment, linkable thành 16 segment.
  • Alarm: 3 outputs, 17 modes, timer liên kết.
  • Auto-tuning, remote SP, manual/auto mode.

Thông Số Kỹ Thuật Chi Tiết

Thông Số Chi Tiết
Kích Thước 1/16 DIN
Đầu Vào TC (K,J,R,S,B,E,N,T,W,PL II,U,L), RTD (Pt100,JPt100,JPt50), Linear (4-20mA)
Sampling Time 250 ms
Indication Accuracy ±0.2% FS
Thuật Toán Điều Khiển PID/ON/OFF, Heat/Cool (2 PID sets), Motor position (no slidewire), Phase angle (1/3 pha), Zero-crossover (1/3 pha)
Proportional Band (P) 0-200% (ON/OFF at P=0)
Integral Time (I) 0-3600 sec (PD at I=0)
Derivative Time (D) 0-900 sec (PI at D=0)
Cycle Time 0-150 sec
Đầu Ra Relay (SPDT 3A/240VAC), Voltage Pulse (20VDC/20mA), Current/Voltage (0-20mA, 0-10V, etc.)
Alarm Up to 3 outputs, 17 modes
Setpoint Programming 2 programs x 8 segments (linkable 16)
Giao Tiếp RS232/RS485 Modbus RTU/ASCII (up to 30 units)
Nguồn Cấp 85-265VAC 50/60Hz, optional 24VDC
Power Consumption 8VA (110V), 12VA (220V)
Môi Trường -20~65°C, 50-85% RH non-condensing
Chứng Nhận UL (QUXY2-E201698), CE Mark

Nguồn: Datasheet Honeywell DC1000 Series (2025). Specs có thể thay đổi theo model cụ thể (DC1010xx-xxxxxx).

Ứng Dụng Phổ Biến

Máy Sấy & Buồng Khí Hậu

Điều khiển PID chính xác cho nhiệt độ ổn định.

Xử Lý Nhựa & Đóng Gói

Heat/cool algorithms, motor position cho van điều khiển.

Sơn Phủ & Bán Dẫn

Phase angle/zero-crossover cho power control, setpoint programming cho quy trình.

Sẵn Sàng Tích Hợp DC1010 Vào Dự Án Của Bạn?

Liên hệ A-System để tư vấn miễn phí, demo sản phẩm, và báo giá cạnh tranh.

Hotline: 0908 265 226 | Email: info@asystem.vn
